Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering

Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering
Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering
Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering

Großes Bild :  Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering

Produktdetails:
Herkunftsort: China
Markenname: Minetech
Zertifizierung: ISO9001
Modellnummer: R38L Selbstbohrer Ankerschraube
Zahlung und Versand AGB:
Min Bestellmenge: 1pc
Preis: $3-$15
Verpackung Informationen: 1 Karton
Lieferzeit: 15-30 Tage
Zahlungsbedingungen: Western Union, MoneyGram, T/T, l/c
Versorgungsmaterial-Fähigkeit: 30000 Stücke pro Monat
Kontakt

Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering

Beschreibung
Produktname: Selbstbohrender Ankerbolzen Schlüsselwörter: Ankerbolzen
Modelltyp: R38L Farbe: Maßgeschneidert
Paket: Holzkiste Verarbeitungstyp: Schmieden
Maschinentyp: Felsen-Ölplattform Anwendung: Schrauben, Treiben • Bohranlagen • Produktionsbohrungen
Hafen: Tianjin Qingdao
Hervorheben:

Customized Self Drilling Anchor Bolt

,

Constructional Engineering Anchor Bolt

,

Customized Forging Anchor Bolt

R38L Self-Drilling Anchor Bolt for Constructional Engineering
As a tension member deep in the stratum, one end of the bolt is connected with the engineering structure, and the other end is deep in the stratum. The whole bolt is divided into a free section and an anchoring section. The free section transmits tension from the bolt head to the anchor solid, while the anchoring section binds the prestressed reinforcement to the soil layer, increasing friction and bearing capacity.
Product Specifications
Item Inner diameter (mm) Ultimate load strength (KN) Yield strength (KN) Weight (kg)
R25N 14 200 150 2.3
R32N 21 280 230 3.1
R32N 18.5 280 230 3.4
R32S 16 360 280 3.6
R32SS 15 405 350 4.1
R38N 21 500 400 4.8
R38N 19 500 400 5.5
R51L 36 550 450 7
R51N 33 550 630 8.4
T30 11 320 260 3.41
T30 14 275 220 2.87
T30 16 245 190 2.7
T40 16 660 525 7
T40 20 540 425 5.6
T52 26 925 730 9.87
T73 53 1160 970 14.1
T73 56 1035 830 10.75
T76N 52 1600 1200 15
T76S 45 1900 1500 19.7
T103 51 3660 2670 44.6
T130 60 7940 5250 75
Product Features
  • Made from high-strength alloy strip steel
  • Simple installation process
  • No resin cartridges required
  • High friction force between bolt and rock mass
  • Excellent shear resistance and tensile strength
  • Includes high-strength plate for even force distribution
Product Images

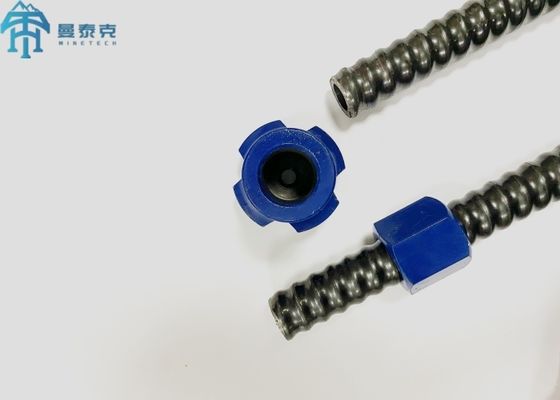

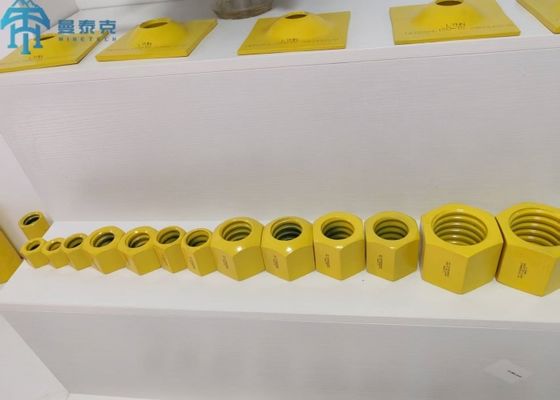

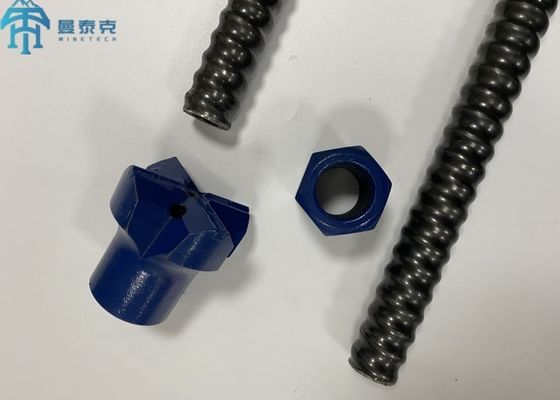

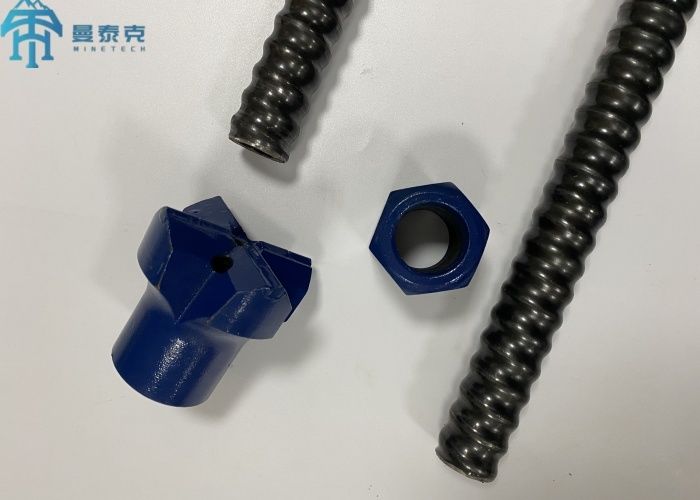

Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering 0
Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering 1
Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering 2
About Hebei Minetech Machinery Technology Co, Ltd.
Located in Hebei province of China, we are a professional manufacturer and exporter of tapered and thread rods, chisels, button bits, and other mining drilling tools. With over a decade of experience and a team of professional engineers, we provide complete solutions for mining machinery.
Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering 3
Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering 4
Customized Forging R38L Self Drilling Anchor Bolt for Constructional Engineering 5
Order Information
  • Payment Methods: T/T (Telegraphic Transfer), Western Union, or L/C at sight
  • Handling Time: Within 10 days for stock items
  • Shipping Options:
    Sample orders: Courier express (DHL/UPS/TNT/FEDEX) or by air
    Bulk orders: By air or by sea
  • Quality Control: Strict inspection and testing before shipping
  • After-Sales Service:
    - 24-hour response to inquiries (excluding holidays)
    - Available technical support
    - Free replacements for confirmed quality issues
